UDL – Uniformly distributed load • CPL – Centre point load • TPL – Third point load • QPL – Quarter point load • FPL – Fifth point load
TX33 • 3-Point
Shop By
Shopping Options
-
Stretch Hose TRUSSCOVER SENATORmore...
1005535
-
TRAVERSENABHÄNGUNG FÜR TRUSS TX34more...
TX34-ABH
-

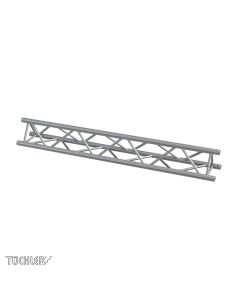

TRUSS TX33 STRAIGHTmore...
TX33-S
-
TRUSS TX33 CORNER 45° - 2 WAY - HORIZONTALmore...
TX33-C19
-
TRUSS TX33 CORNER 60° - 2 WAY - HORIZONTALmore...
TX33-C20
-
TRUSS TX33 CORNER 90° - 2 WAY - HORIZONTALmore...
TX33-C21
-
TRUSS TX33 CORNER 120° - 2 WAY - HORIZONTALmore...
TX33-C22
-
TRUSS TX33 CORNER 135° - 2 WAY - HORIZONTALmore...
TX33-C23
-
TRUSS TX33 CORNER 90° - 2 WAY - VERTICAL - APEX UPmore...
TX33-C24
TRUSS TX33 CORNER 90° - 2 WAY - VERTICAL - APEX UPper pcs €306.00 €255.00 -
TRUSS TX33 CORNER 90° - 2 WAY - VERTICAL - APEX INmore...
TX33-C25
TRUSS TX33 CORNER 90° - 2 WAY - VERTICAL - APEX INper pcs €307.20 €256.00 -
TRUSS TX33 CORNER 90° - 3 WAY - RIGHT - APEX UPmore...
TX33-C31
TRUSS TX33 CORNER 90° - 3 WAY - RIGHT - APEX UPper pcs €444.96 €370.80 -
TRUSS TX33 CORNER 90° - 3 WAY - LEFT - APEX UPmore...
TX33-C32
TRUSS TX33 CORNER 90° - 3 WAY - LEFT - APEX UPper pcs €444.96 €370.80 -
TRUSS TX33 CORNER 90° - 3 WAY - RIGHT - APEX DOWNmore...
TX33-C33
TRUSS TX33 CORNER 90° - 3 WAY - RIGHT - APEX DOWNper pcs €444.96 €370.80 -
TRUSS TX33 CORNER 90° - 3 WAY - LEFT - APEX DOWNmore...
TX33-C34
TRUSS TX33 CORNER 90° - 3 WAY - LEFT - APEX DOWNper pcs €444.96 €370.80 -

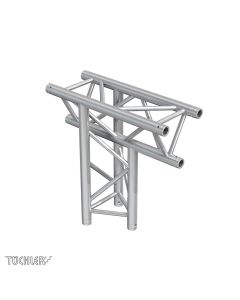

TRUSS TX33 T-JUNCTION - 3 WAY - VERTICAL - APEX DOWNmore...
TX33-T35
TRUSS TX33 T-JUNCTION - 3 WAY - VERTICAL - APEX DOWNper pcs €435.60 €363.00 -

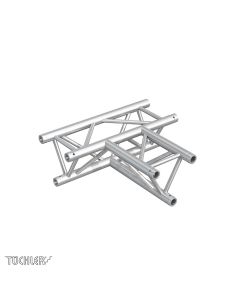

TRUSS TX33 T-JUNCTION -3 WAY - HORIZONTALmore...
TX33-T36
-

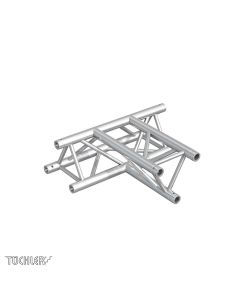

TRUSS TX33 T-JUNCTION - 3 WAY - HORIZONTAL - APEX UPmore...
TX33-T37
TRUSS TX33 T-JUNCTION - 3 WAY - HORIZONTAL - APEX UPper pcs €425.46 €354.55 -

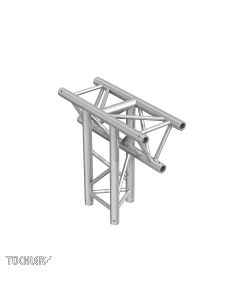

TRUSS TX33 T-JUNCTION - 3 WAY - VERTICAL - APEX DOWNmore...
TX33-T38
TRUSS TX33 T-JUNCTION - 3 WAY - VERTICAL - APEX DOWNper pcs €401.46 €334.55 -

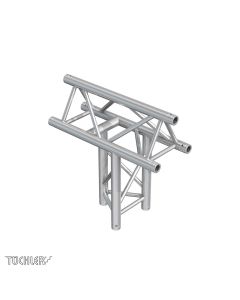

TRUSS TX33 T-JUNCTION - 3 WAY - VERTICALmore...
TX33-T39
-

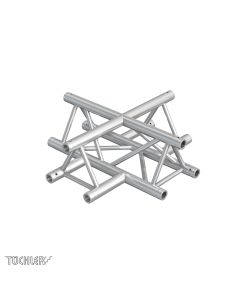

TRUSS TX33 CROSS JUNCTION - 4 WAYmore...
TX33-C41
-

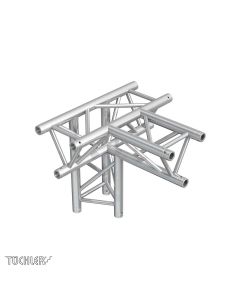

TRUSS TX33 T-JUNCTION - 4 WAY - APEX DOWNmore...
TX33-T42
-
TRUSS TX33 T-JUNCTION - 4 WAY - APEX UPmore...
TX33-T43
-
TRUSS TX33 CORNER 90° - 4 WAY - RIGHTmore...
TX33-C44
-
TRUSS TX33 CORNER 90° - 4 WAY - LEFTmore...
TX33-C45
TX33 - Infos
| ART.Nr. | LENGTH | WEIGHT | INFO |
| TX33-50 | 0.5m | 2.9kg | STRAIGHT ELEMENT |
| TX33-75 | 0.75m | 3.70kg | STRAIGHT ELEMENT |
| TX33-87,5 | 0.875m | 4.20kg | STRAIGHT ELEMENT |
| TX33-100 | 1m | 4.60kg | STRAIGHT ELEMENT |
| TX33-125 | 1.25m | 5.50kg | STRAIGHT ELEMENT |
| TX33-150 | 1.5m | 6.40kg | STRAIGHT ELEMENT |
| TX33-200 | 2m | 8.10kg | STRAIGHT ELEMENT |
| TX33-250 | 2.5m | 9.90kg | STRAIGHT ELEMENT |
| TX33-300 | 3m | 11.70kg | STRAIGHT ELEMENT |
| TX33-350 | 3.5m | 13.50kg | STRAIGHT ELEMENT |
| TX33-400 | 4m | 15.30kg | STRAIGHT ELEMENT |
| m | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
| UDL | kg/m | 747 | 559 | 361 | 249 | 181 | 137 | 107 | 86 |
| Bend | cm | 0,6 | 1,5 | 2,4 | 3,5 | 4,7 | 6,2 | 7,8 | 9,7 |
| CPL | kg | 1094 | 885 | 736 | 628 | 547 | 482 | 431 | 388 |
| Bend | cm | 0,5 | 1 | 1,6 | 2,4 | 3,3 | 4,4 | 5,7 | 7,2 |
| TPL | kg | 717 | 596 | 5,4 | 437 | 384 | 341 | 3,5 | 278 |
| QPL | kg | 564 | 476 | 406 | 342 | 294 | 257 | 228 | 204 |
| FPL | kg | 476 | 383 | 316 | 269 | 233 | 205 | 182 | 164 |
