Curtain track systems of the TT and XT series for professional use for large and very large curtains

When it comes to moving large of the very large curtains on stages, in TV and film studios, multi-purpose halls, community centers, in the gym or other professional venues, then the curtain pull systems of the TT series are the means of choice.
You can also take advantage of the robustness of the curtain pull systems for curtains that can be reached by the public, for example.

AÜ 170723

Essential features of the professional TT and XT curtain track systems for large and very large curtains :

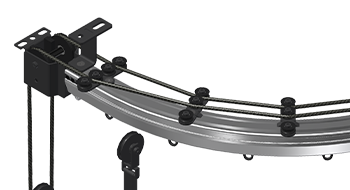

TT1 Curtain Tracks

  • for very heavy curtains, main curtains, horizons, studio curtains weighing several hundred kilos.
  • Spans up to 3m between mounting points
  • Curves / curves: minimum radius 100cm
  • Extremely robust
  • Turnouts available, e.g. for TV studios
  • Highest security for curtains with public contact, e.g. in schools or communities (vandalism-proof)
  • Operation

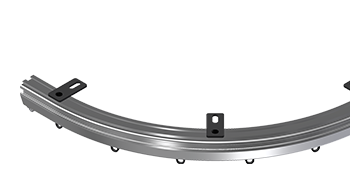

    • manual as a spin pull
    • manual as a cord pull

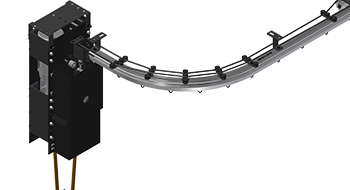

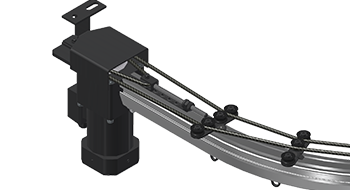

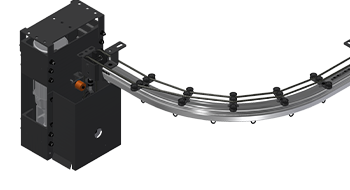

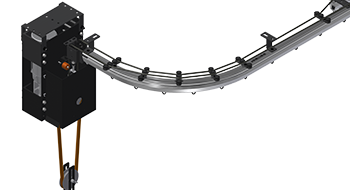

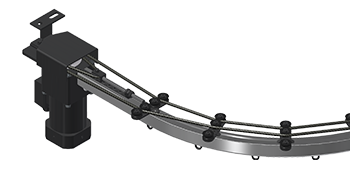

    • electric up to 100cm/s rope speed

TT2 Curtain Tracks

  • for very heavy curtains, main curtains, horizons, studio curtains weighing several hundred kilos.
  • Curves
    • lateral smallest radius 30cm
    • vertically smallest radius 36cm => upwards and downwards running arcs possible
  • Very sturdy
  • Switches available, e.g. for studio curtains
  •  Highest security for curtains with public contact, e.g. in schools (vandalism-proof)
  • Operation

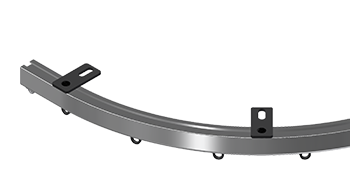

    •  manual as a spin pull

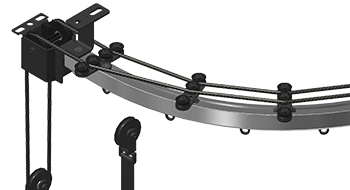

    • manual as a cord pull

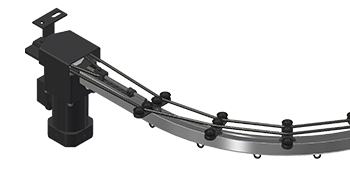

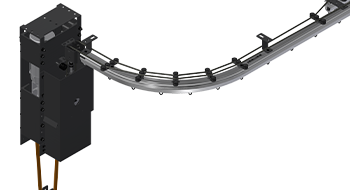

    • electric with rope drive up to 100cm/s rope speed
    • electric with self-propelled drive "T-Lok" up to 30cm/s

XT3 Theatre- und Decorative curtain Tracks

  • Ejection rail with external plastic rollers
  •  robust I-aluminiumprofile
  • Radi can be easily bent by the user himself
  • ideal for stage decorations and light curtains
  • Operation:
    • manual as a spin pull
