Stage System T-REX – Stage system for municipal events, municipalities, public buildings, schools, lecture halls, event halls
Lightweight mobile stage with plug-in legs for quick assembly - the TUCHLER stage platform T-REX is a mobile stage system ideal for event spaces, schools, kindergartens, hotels and seminar rooms. Thanks to its lightweight construction and plug-in leg system, assembly is possible without tools and can be completed in a very short time. This makes the T-REX platform the perfect solution for flexible stage concepts, temporary mobile stages, and presentation areas.
Advantages of T-Rex stage platforms
- leichte Bauweise – Einfach zu transportieren und zu handhaben.
- Schneller, werkzeugloser Aufbau – Steckbeine ermöglichen eine flexible Montage.
- Platzsparende Lagerung – Ideal für wechselnde Veranstaltungsorte.
- Rutschfeste Oberfläche – Sicherer Stand für verschiedene Einsatzbereiche.
- Vielseitig einsetzbar – Perfekt als mobile Bühne, Tribüne oder Podest für Events.
- Kosteneffizient – Optimal für Bildungseinrichtungen, Hotels und Veranstaltungsräume.
Flexible stage system for different event formats
The T-REX stage platform is ideal for schools, kindergartens, hotels, seminar rooms, and event spaces. Whether as a theater stage, presentation space, or for seminars and events – its lightweight construction and quick assembly offer maximum flexibility.
System description

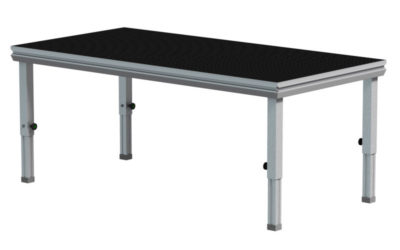

The platforms consist of a frame made of a multi-chamber aluminum profile with a panel as shown here. In the corners of the aluminum frame, there are receptacles into which the plug-in legs or telescopic plug-in legs can be easily inserted and firmly clamped using a clamping screw.
In addition to the standard formats, custom formats and filler elements are also available.
200x100cm
100x100cm
200x50cm
100x50xm
Raw blockboard
Hexagon – weatherproof and slip-resistant
Brown phenolic film faced plywood
Brown-painted blockboard
Plexi transparent
Plexi white
Plug-in legs with fixed height
Square Plug-in Leg:
Height: 20, 40, 60, 80, 100, 120 cm
Plastic cap protects the floor
Profile: 60x60 mm
Plug-in legs with telescopic height adjustment
This type of plug-in leg, when designed as telescopic legs, is primarily used on uneven surfaces.
When constructing stages of different heights on level surfaces, fixed-height plug-in legs allow for faster setup.
A solid grey rubber foot protects the floor.
Telescopic Legs – Adjustment Range:
40–60 cm, 60–100 cm, 80–140 cm, 100–180 cm
Only 32 kg dead weight per 2x1 m stage platform T-REX
Load Capacity according to DIN 15921
Vertical: q = 750 kg/m²
Horizontal: q / 20 e for handrails

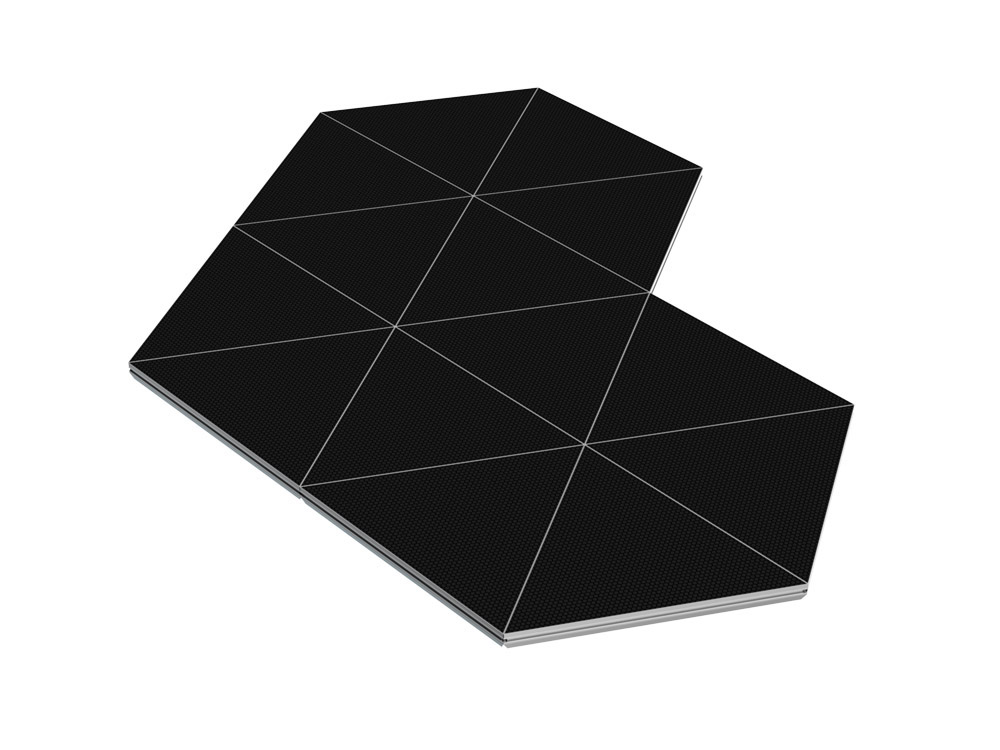

Stage System T-REX – Setup Examples
Whether as a stage, catwalk, choir riser, or creative custom format – with T-REX stage platforms, you can always create the perfect surface for your event quickly and easily.
