TT1 curtain rail with UNIVERSAL T-HAN electric wire rope hoist for very large and fast-moving curtains such as main curtains in multi-purpose halls, stages, theatres, etc.
Very large curtains in the weight range 200kg and rail lengths of 40m are moved by the electric wire rope hoist UNIVERSAL T-HAN on the heavy curtain rail TT1 with rope running speeds of up to 100cm/s. The large load-bearing capacity of the TT1 rail profile reduces the necessary suspensions to a minimum, thus saving assembly time and costs.
The TT1 curtain hoist system, configured with UNIVERSAL T-HAN electric drive, enables infinitely variable rope speeds of up to 100 cm/s with very high tractive forces. As a result, even very large curtains can be moved at great speed. The wire rope hoist is controlled and operated via Logo Type 1 or Logo Type 2 curtain controls. The standard version of the wire rope hoist is designed for curtain weights of around 200kg and rail lengths of around 40m. TT1 curtain hoist with UNIVERSAL T-HAN electric wire rope hoist is perfect for use for main curtains, large dividing curtains and other large curtains in theaters, multi-purpose halls and other large venues.
Technical data and the load table can be found at the bottom of this page after the products. AÜ 050923

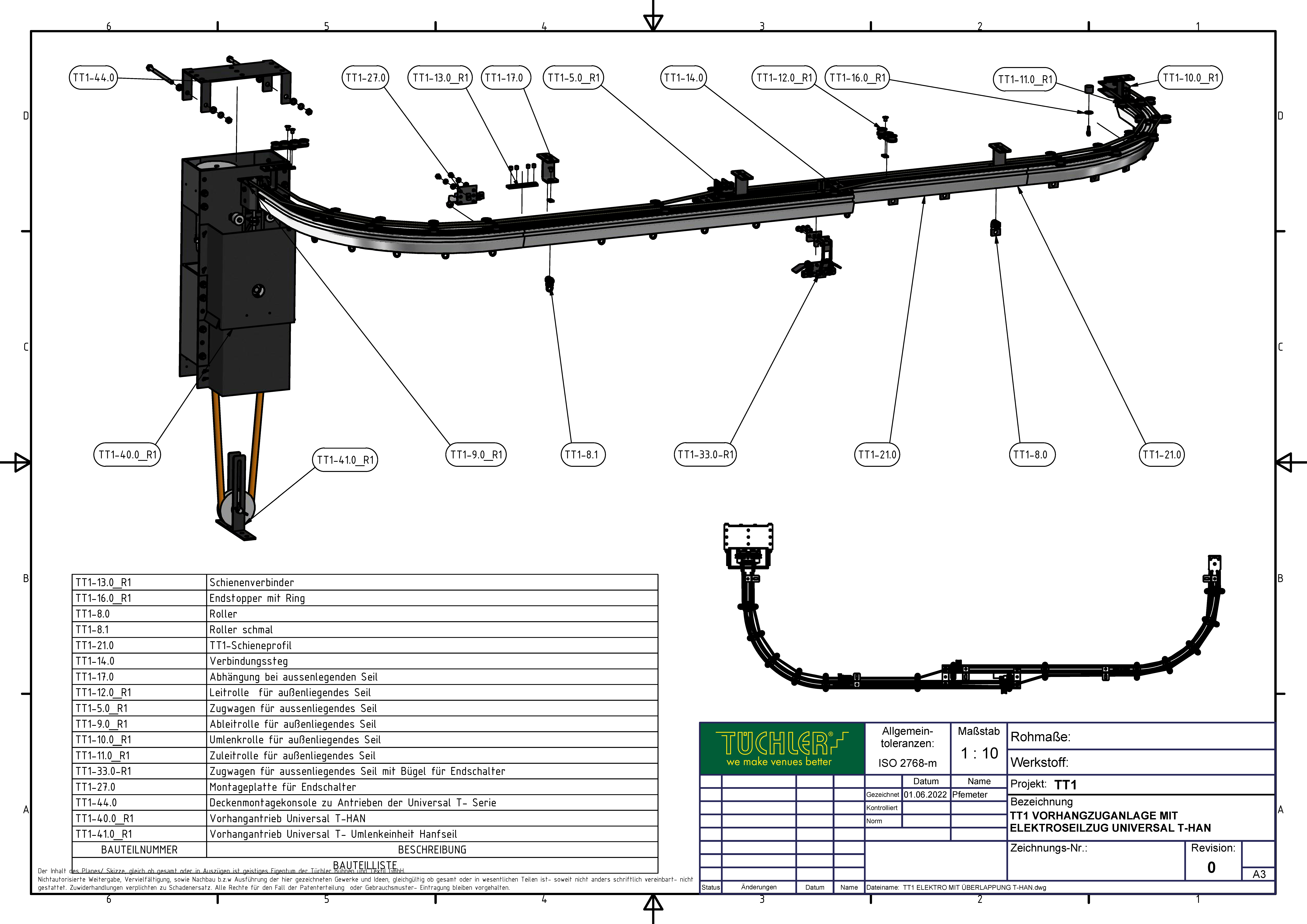

For the assembly drawings and information on the function of the hemp rope, click on the desired configuration:
The hemp rope provides both the manual drive, but also serves as a safety device in emergency mode, as the electric motor automatically disengages when the power is switched off.
In electrical operation, there is no frictional connection to the hemp rope, so no protection against the hemp rope is necessary.
When using this configuration, towing cars with overlappers are used. The encroacher carries the curtain about 20cm in front of the train car. In the case of curtains that only move to one side, the pulley of the rope can be covered. This is important for curtains that are supposed to close against a wall, otherwise a gap will remain between the curtain and the wall.
If a curtain with a central opening is moved, an overlap of the curtain parts is achieved even if the rail profile is inserted without overlapping.
The advantage of overlapping with rail profiles lies in the unrestricted overlap path. As a result, large main curtains on stages or very high blackout curtains in particular close safely. However, this configuration is only possible when using the curtain pull to move a center-opening curtain. If you want your curtain to open only to one side and cover the pulleys of the rope at the end of the rail, please use the "Configurations with Overlap".
Curtain drive UNIVERSAL T-HAN is used to move heavy curtains on the TÜCHLER TT rail series.The curtain is driven either electrically or manually via a 25mm thick hemp rope.Despite its enormous
Aluminum track, black anodizedTrack length: 6 mCombination track for use with both internal and external drive cables.Suitable for hand-operated, pull-cord, and electric curtain systems
Black anodizedFor use with: TT1 pull-cord curtain track system with external cable and electric curtain track system with external cableConsists of: 4 ball bearing carrier rollers, 4 ball bearing
Black anodizedFor use with: TT1 pull-cord curtain track system with external cable and electric curtain track system with external cableConsists of: 20 cm overlap arm, 4 ball bearing carrier rollers,
black anodizedFor use with: TT1 electric curtain track system with external cableConsists of: Bracket for limit switch, 4 ball bearing carrier rollers, 4 ball bearing support rollers, 2 guide rollers
Black anodizedFor use with: TT1 electric curtain track system with external cableConsists of: Bracket for limit switch, 20 cm overlap arm, 4 ball bearing carrier rollers, 4 ball bearing support
<p>black anodized Deflets the rope downwards when the rope guide is on the outside Maintenance-free, self-greasing high-chem plastic rollers for rope DM 8mm</p>
black galvanizedFor use with: TT1 electric curtain track system with internal and external cableConsists of: Mounting plate, mounting block, galvanized black screws
Black anodizedFor use with: All TT1, TT2 and XT3 curtain track systemsConsists of: Base plate, mounting blocksUse: For parallel curtain track placement e.g. overlapping area
SUSPENSION BRACKET FOR OUTSIDE GUIDED CORD TT1-17.0
black anodizedFor use with: TT1 pull-cord curtain track system with external cable, electric curtain track system with external cable, TT2 pull-cord curtain track system with external cable and
black anodizedFor use with: TT1 pull-cord curtain track system with external cable, electric curtain track system with external cable, TT2 pull-cord curtain track system with external cable and
black anodizedFor use with: TT1 pull-cord curtain track system with external cable, electric curtain track system with external cable, TT2 pull-cord curtain track system with external cable and
BlackFor use with: TT1 pull-cord curtain track system with internal and external cable, electric curtain track system with internal and external cable, TT2 pull-cord curtain track system with
Silver anodizedFor use with: all TT1, TT2 and XT3 curtain track systemsConsists of: Mounting block with M8 threadUse: For mounting attachments in the top groove of the track, can be mounted to the
